Description

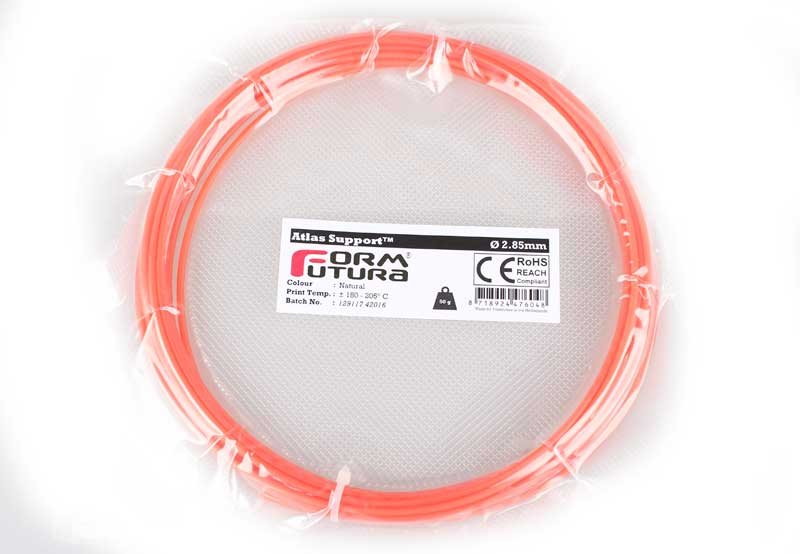

Atlas Support
Atlas Support is the next generation in PVA water-soluble support materials for FFF/FDM 3D printing. Atlas Support is the result of extensive research to PVA improvement which has resulted in an unique formulation where numerous PVA grades have been blended into one superior water soluble support material with improved thermal stability.
Atlas Support has good bonding to a wide variety of materials – such as PLA, ABS, PETG, ASA, HIPS, et cetera – and is much less sensitive to degradation by humidity.
Unique features
- Excellent water solubilityo
- Excellent support material for complex dual extrusion prints!
- Improved thermal stabilityo
- Much lesser risk of clogged nozzles caused by deteriorating/crystalizing material in (too) hot nozzle
- Good bonding to various (thermo)plastics
- Odourless processing
- Biodegradable once dissolved in water
General printing guidelines *
Nozzle size: ≥ 0.15mm | Layer height: ≥ 0.1mm | Flow rate: ± 100% |
Print temp: ± 180 – 205° C * | Print speed: Medium | Retraction: Yes – 5mm |
Heat bed: ± 0 – 60° C | Fan speed: 0-25% | Experience level: Expert |
*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers
