Description
FOR YOU IS SUPER:
The X-BULL 3000lbs is one of our new X-BULL high-efficiency winches for all offroad and life-loving customers in 2021. Over the past few years, we docu ment the product issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one. Notably, the X-BULL 3000lbs uses the stronger relays on the market. We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use. X-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.
FEATURES:
1.Winch Solenoid Relay
Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches,not necessarily an overload protector if your winch has a perfect relay. The X-BULL relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.
2.Motor
Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.
3.3-Stage Planetary
The real three sets of 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio,which can achieve coaxial deceleration (growth).
IN THE BOX:

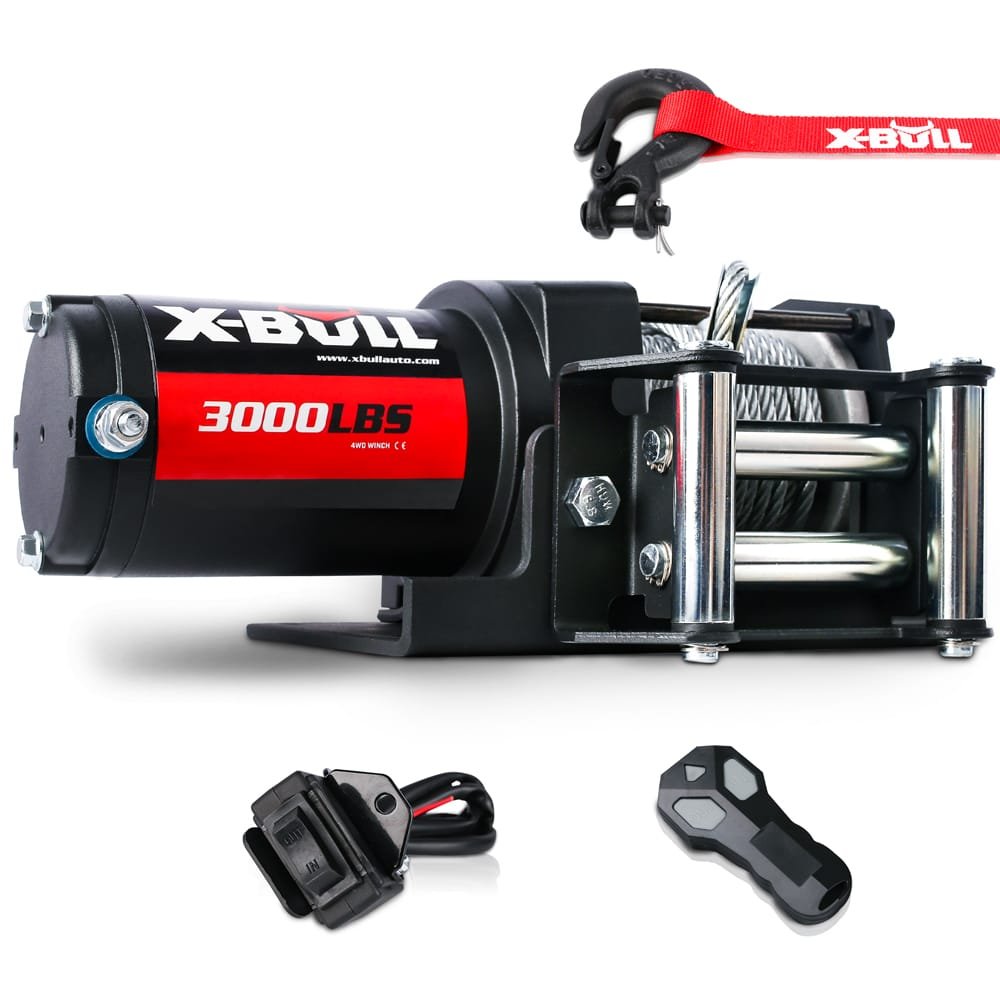

1* 3000LBS Winch
1* 4-Way Roller Fairlead
1* Clevis Hook with safety clip and marker tab
1* Hand held Switch
1* New Style Wireless Remotes
1* Winch Lanyards
1* Next Generation Control Box
1* User Manual
1* Set of Stainless Steel Fitting Bolts
SPECIFICIATION:
Rated Single Line Pull: 3000lb.(1360kg)Winch Certification: CEDuty Cycle Rating: 5% (45 sec at Max Rated Load: 14 min, 15 sec Rest) Pendant Controller: Wired, 12ft (3.7m) longSteel Cable:5.4mm*9.2m
Handlebar Controller: Wired, 8ft (2.4m) long
Application:ATV/UTV/BOAT
Motor:12VDC 1.5 HP Permanent Magnet
Gear train: 3-Stage Planetary
Brake: Auto. Load Holding Mechanical
