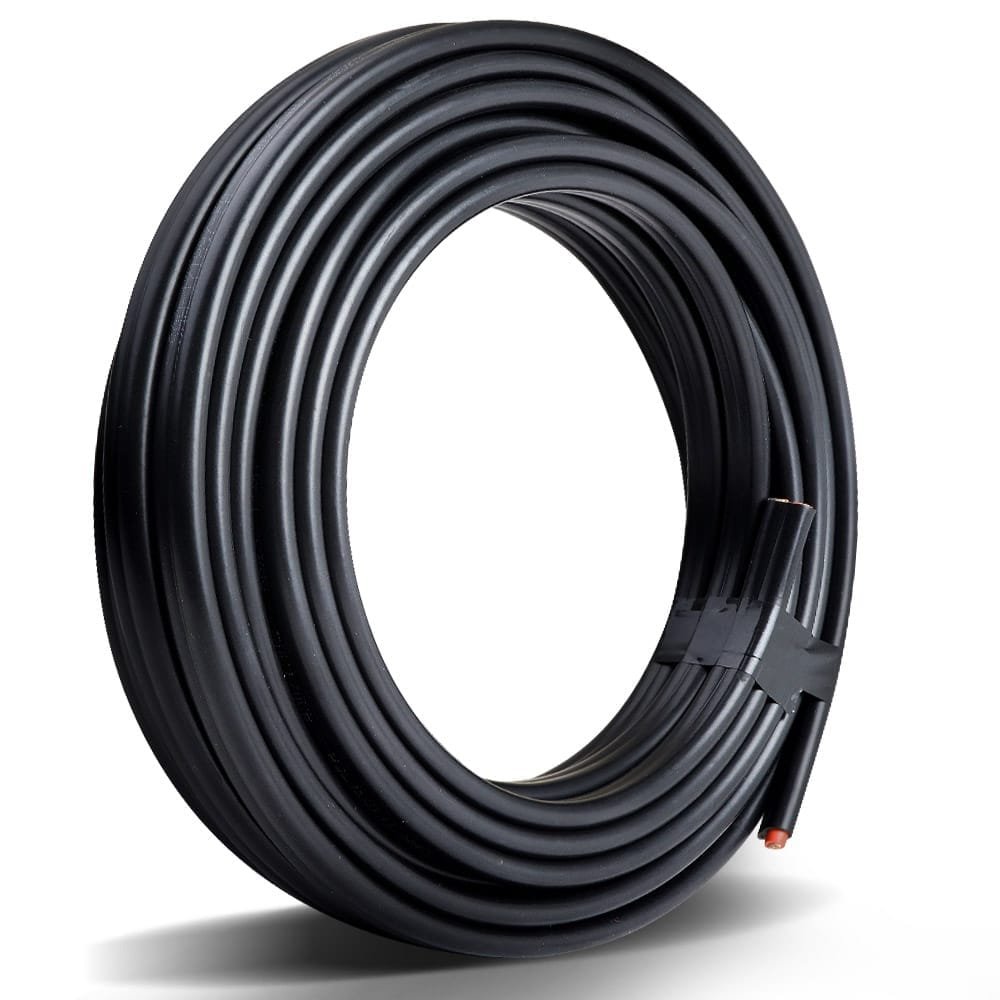

Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 10M 8B&S

$59 Was: $129

With its twin core design, our B & S Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence.

  • Conductor: Oxygen-free plain copper wire to AS/NZ 1125
  • Insulation: V90 PVC to AS/NZ 3808
  • Sheath: 5V90 PVC to AS/NZ 3808
  • Amp rating: 59.2
  • No. of cores: 2
  • Cable Length: 10m
  • Industry Equiv. : 8B&S
  • Strand no. diameter: 96/0.32mm
  • Nominal area: 7.71mm2
  • Nominal O.D.: 7.1mm x 12.5mm
  • Colour: Black sheathing
  • Conductor resistance <2.38??/Km(20??)
  • Dielectric strength(kV/sec AC): 2.5/60
  • Unaged acceptable tensile strength ?? 12.5Mpa
  • Unaged acceptable ultimate elongation ??130%

200 in stock

Ask A Question

    Description

    Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 10M 8B&S

    10M 8B&S Twin Core Wire 2 Sheath Electrical Cable

    With its twin core design, our B & S Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. While ordinary wires has on average capacity, our B & S cable has a higher capacity. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.



    Features

    • 8B&S twin sheath automotive cable
    • Oxygen-free copper core conductor
    • Low eccentricity
    • Reinforced PVC material
    • SAA-certified
    • Can normally work up to 450V AC/DC

    Specifications

    • Conductor: Oxygen-free plain copper wire to AS/NZ 1125
    • Insulation: V90 PVC to AS/NZ 3808
    • Sheath: 5V90 PVC to AS/NZ 3808
    • Amp rating: 59.2
    • No. of cores: 2
    • Cable Length: 10m
    • Industry Equiv. : 8B&S
    • Strand no. diameter: 96/0.32mm
    • Nominal area: 7.71mm2
    • Nominal O.D.: 7.1mm x 12.5mm
    • Colour: Black sheathing
    • Conductor resistance <2.38??/Km(20??)
    • Dielectric strength(kV/sec AC): 2.5/60
    • Unaged acceptable tensile strength ?? 12.5Mpa
    • Unaged acceptable ultimate elongation ??130%

    Package Content

    • 1 x Twin core cable

    Shipping & Returns

    Delivery Time: 3 to 10 days.

    Order Handling Time: 1 to 2 days.

    Returns: Return needs to be initiated within 30 days.
